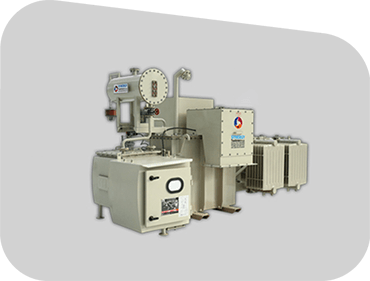

Features of BIS-1180
Sl No | Rating (kVA) | Impedance (Percent) | Maximum Total Loss (W) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
LEVEL 1 | LEVEL 2 | LEVEL 3 | LEVEL 4 | LEVEL 5 | ||||||||
50 Percent Load | 100 Percent Load | 50 Percent Load | 100 Percent Load | 50 Percent Load | 100 Percent Load | 50 Percent Load | 100 Percent Load | 50 Percent Load | 100 Percent Load | |||
i) | 250 | 4.50 | 980 | 2930 | 920 | 2700 | 864 | 2488 | 811 | 2293 | 761 | 2113 |
ii) | 315 | 4.50 | 1025 | 3110 | 955 | 2750 | 890 | 2440 | 829 | 2164 | 772 | 1920 |
iii) | 400 | 4.50 | 1225 | 3450 | 1150 | 3330 | 1080 | 3214 | 1013 | 3102 | 951 | 2994 |
iv) | 500 | 4.50 | 1510 | 4300 | 1430 | 4100 | 1354 | 3909 | 1282 | 3727 | 1215 | 3554 |
v) | 630 | 4.50 | 1860 | 5300 | 1745 | 4850 | 1637 | 4438 | 1536 | 4061 | 1441 | 3717 |
vi) | 800 | 5.00 | 2287 | 6403 | 2147 | 5838 | 2015 | 5323 | 1892 | 4853 | 1776 | 4425 |
vii) | 1000 | 5.00 | 2790 | 7700 | 2620 | 7000 | 2460 | 6364 | 2310 | 5785 | 2170 | 5359 |
viii) | 1250 | 5.00 | 3300 | 9200 | 3220 | 8400 | 3142 | 7670 | 3066 | 7003 | 2991 | 6394 |
ix) | 1600 | 6.25 | 4200 | 11800 | 3970 | 11300 | 3753 | 10821 | 3547 | 10363 | 3353 | 9924 |
x) | 2000 | 6.25 | 5050 | 15000 | 4790 | 14100 | 4543 | 13254 | 4309 | 12459 | 4088 | 11711 |
xi) | 2500 | 6.25 | 6150 | 18500 | 5900 | 17500 | 5660 | 16554 | 5430 | 15659 | 5209 | 14813 |
